Molex 51004 2.0mm Pitch 2Pin 3Pin Battery Cable Connectors Assembly

Product Categories
Unitech Energy System Limited
Contact Now

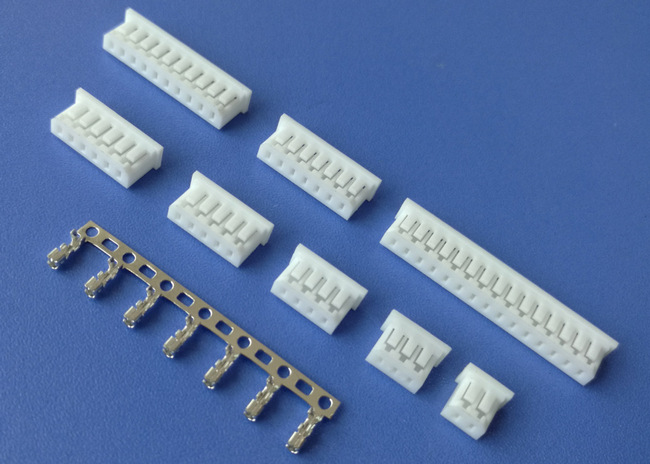

Molex 51004 2.0mm Pitch 2Pin 3Pin Battery Cable Connectors Assembly

  • 1
  • 2
  • 3

Brand Name : Unitech

Model Number : Molex 51004

Certification : CE ROSH

Place of Origin : China Mainland

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 100000 pcs per month

Delivery Time : 10 days

Packaging Details : High safe package

Product Name : Battery Cable Connector

Connector : Molex 51004 Male

Pitch : 2.0mm

Cable wire : UL1007 1571 1569 26-30awg

Wire length : customized

Wire Jacket : PVC or customized

Samples : free

Contact Now

Molex 51004 2.0mm Pitch 2Pin 3Pin Battery Cable Connectors Assembly

Product Specification:

Audio wire harness molex 51004 connector 2.0mm pitch

Current Rating:2A AC/DC

Voltage Rating:125V AC/DC

Temperature Range:-25°C~+85°C

Contact Resistance:20mΩ Max

Insulation Resistance:1000MΩ Min

Withstanding Voltage:800V AC/minute

Wire Range: AWG#24~30

Item Part No. Material Poles Q'TY
Wafer A2002WV/WR-NP Nylon66 UL94V-0 02~15 1,000PCS/Bag
Housing A2002H-NP Nylon66 UL94V-0 02~15 1,000PCS/Reel
Terminal A2002TF-P Phosphor Bronze 10,000PCS/Reel

Molex 51004 2.0mm Pitch 2Pin 3Pin Battery Cable Connectors Assembly

Molex 51004 2.0mm Pitch 2Pin 3Pin Battery Cable Connectors Assembly

our service:

1. We can make custom wiring harness according to customer's design.

2. Different types wires, PVC, PU, PTFE, SILICONE, XLPE, RUBBER insulated can be supplied.

3. This product applies to electrical appliances.

4. MOQ: 1000PCS.

5. Delivery time: 10 days after payment.

6. Payment terms: T/T(30% in advance,the balance pay before delivery).

7. Price terms: FOB SHENZHEN.

8. Packing: Usually PE inner ,outer carton,or at buyer's option.


Quality Molex 51004 2.0mm Pitch 2Pin 3Pin Battery Cable Connectors Assembly wholesale

Molex 51004 2.0mm Pitch 2Pin 3Pin Battery Cable Connectors Assembly Images
