JST ZHR-2P 1.5mm Picth Male Connector Cable And Wire Harness Assembly

  • 1
  • 2

Brand Name : Unitech

Model Number : JST-ZHR 2P

Certification : ROSH

Place of Origin : China Mainland

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union,

Supply Ability : 100000 pcs per month

Delivery Time : 10 days

Packaging Details : High safe package

Product Name : Custom Wiring Harness

Connector : JST-ZHR-2P

Connector Pitch : 1.5mm

Cable wire Code : 28-30AWG

Cable Length : customized as your requirement

Sample : Free

Service : OEM ODM Accept

Contact Now

JST ZHR-2P 1.5mm Picth Male Connector Cable And Wire Harness Assembly

Product Specification:

Rated Voltage: 250V AC,DC
Rated current: 1A AC,DC
Contact resistance: 20MΩ max
Insulation Resistance: 500MΩ min
Withstand Voltage: 500V AC/minute
Temperature: -25℃~+85℃
Wire Range: AWG#32~#26

JST ZHR-2P 1.5mm Picth Male Connector Cable And Wire Harness Assembly

HOW TO ORDER OR INQUIRY?

1, Tell us the connector pitch and number of pins

2, Tell us the wire AWG.

3, Tell us the length ,connection and preferred color.

Connector pitch available in pitch 1.25mm , 2.0mm (PH), 2.5mm(XH,EH,5264,2510,6254), SCN, EL, Dupont (2.0&2.54mm ), 3.96mm/VH3.96mm, 4.2mm(5557) and 5.08mm. If no special request, connector is equivalent of Molex, JST or AMP. Wires are standard UL appvoal wire. One stop supply for male connector using on board end.JST,Molex ,AMP Equivalent Housing Connector etc.

Free samples available for test. L/T for making samples is 5days. L/T for production is 10~15days. We can supply the pcb male header in Surface Mounting, Through Hole to board and Right Angle Through Hole type, which are match use with these wire harness. Pls contact us and advise your detailed required.

Please feel free to contact us if you need any help: info@unitechindustry.com


Quality JST ZHR-2P 1.5mm Picth Male Connector Cable And Wire Harness Assembly wholesale

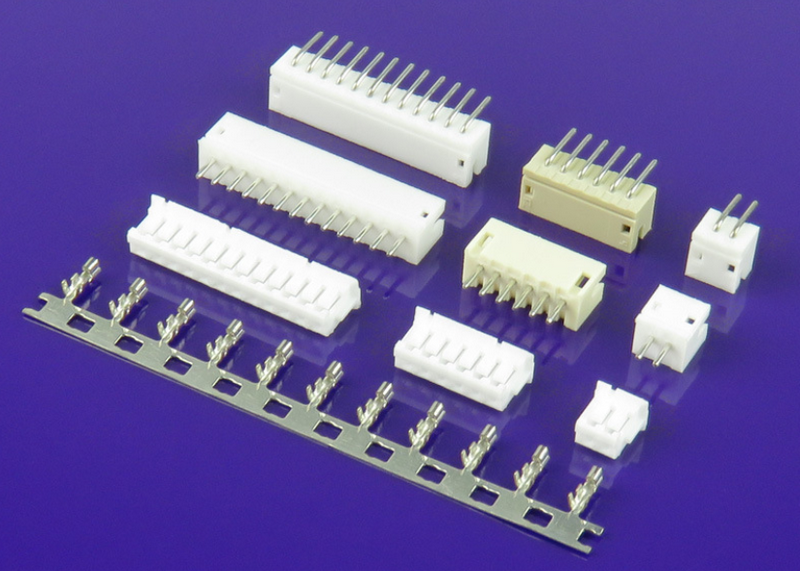

JST ZHR-2P 1.5mm Picth Male Connector Cable And Wire Harness Assembly Images
