3.7V Lithium Polymer Battery Pack 500mah 503035 Lithium Ion Polymer Battery

Name: 37V Lithium Polymer Battery Pack 500mah 503035 Lithium Ion Polymer Battery
Brand: Unitech
Price: 1 USD

Quality 3.7V Lithium Polymer Battery Pack 500mah 503035 Lithium Ion Polymer Battery wholesale

Brand Name : Unitech

Model Number : 503035 500mAh

Certification : UN38.3 MSDS CE RoHS

Place of Origin : China

MOQ : 1000pcs

Price : negotiable

Payment Terms : T/T, Western Union, L/C

Supply Ability : 100000pcs/Month

Delivery Time : 25 days

Packaging Details : Standard carton box within 10kg

Type : lipo batteries

Model number : 503035 3.7V 500mAh

Free Samples : Available

Battery Size : 5.0*30*35mm

Shipping : Fedex, UPS, TNT, DHL, etc

Certificate : UN38.3/CE/ROHS

Contact Now

Best Quality 3.7V Lipo Battery Cell 500mah 503035 Lithium Ion Polymer Battery

Lipo battery Specification:

Product Name	503035 500mAh Lipo battery
Battery Type	Lithium polymer battery
PCM	Available
Accembly Composed Type	1S1p/ 1 cell
Nominal Capacity	500 mAh	@0.2C discharge
Nominal Voltage	3.7 V
Charge Voltage	4.2±0.12 V
Cut-off Voltage	3.0 V
Standard charge Current	250mA	@0.5C charge
Max. charge current	500 mA	@1C charge
Standard Discharge Current	250 mA	@0.5C discharge
Max. Discharge Current	500 mA	@1C discharge
Resistance	＜100 mΩ
Cycle Life:	Over 500 times
Weight (Approx.)	10 g
Dimensions(T.W.L.)	5.03035 (mm)
Charge Temperature	0 ~ 45℃
Discharge Temperature	-20 ~ 60℃
Storage Temperature	-10~40℃	Less than one month
Storage Temperature	0~30℃	More than one month
Protection Function(PCM)	Over charge, Over discharge, Over load, Short Circuit
Warranty	12 Months

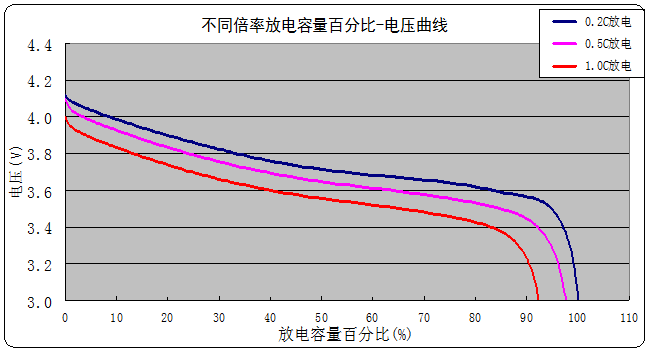

Battery dishcarge curve:

3.7V Lithium Polymer Battery Pack 500mah 503035 Lithium Ion Polymer Battery

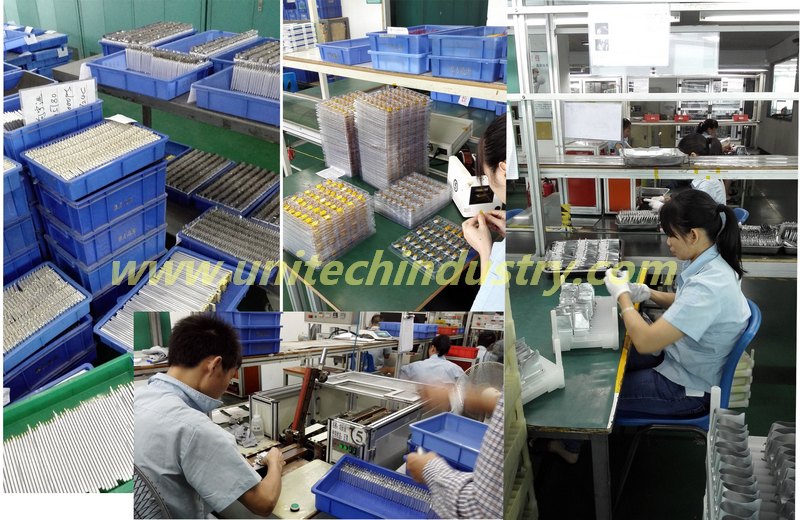

Battery Manufacturing pictures:

Battery package:

3.7V Lithium Polymer Battery Pack 500mah 503035 Lithium Ion Polymer Battery

The typical application fields of lipo battery:

3.7V Lithium Polymer Battery Pack 500mah 503035 Lithium Ion Polymer Battery
