326090 Power Supply 2000mAh 14.8V Lipo Battery Pack for Medical device
Specification:
| Product Name | 326090 2000mAh 14.8V lipo battery pack |
| Battery Type | Lithium Polymer battery |
| Power Wh: | 29.6Wh | |
| Accembly Composed Type | 4S/ 4 cells | |
| Nominal Capacity | 2000 mAh | @0.2C discharge |
| Nominal Voltage | 14.8 V | |
| Charge Voltage | 16.8±0.12 V | |
| Cut-off Voltage | 12.0 V | |
| Standard charge Current | 400 mA | @0.2C charge |
| Max. charge current | 2000 mA | @1C charge |
| Standard Discharge Current | 400 mA | @0.2C discharge |
| Max. Discharge Current | 2000 mA | @1C discharge |
| Resistance | ＜50 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 140 g | |
| Dimensions(T.W.L.) | 13.0*60*92 (mm) | battery pack |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -10 ~ 60℃ | |
| Storage Temperature | 0~40℃ | Less than one month |
| 0~30℃ | More than one month |

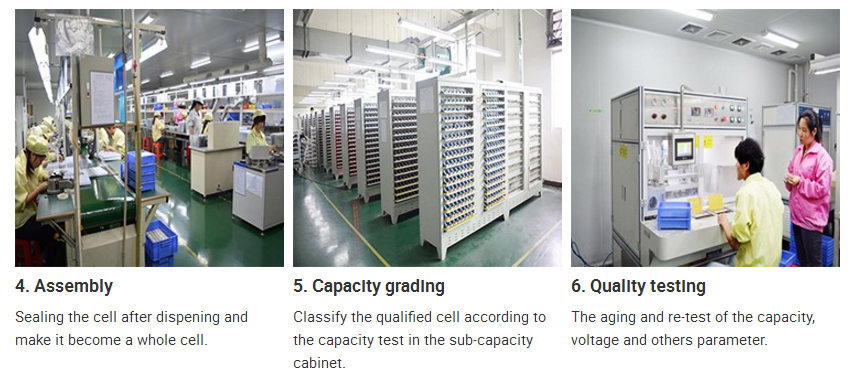

Manufacture process:
Advantages:
1. Accept OEM/ODM.
2. High energy density.
3. High working voltage for single battery cells.
4. Pollution-free.
5. Long cycle life.
6. No memory effect.
7. Capacity, resistance, voltage, platform time consistency is good.
8. With short-circuit production function, safe and reliable.
9. Factory price& High quality.
10. Good consistency, low self discharge.
11. Light weight, small and customized size.
12. Wide application for electronics and industry.
Application:
Portable Devices:GPS,PDA,E-book,PMP,PSP,laptop,walkie-talkies, portable Medical Device,etc.
Illuminate Devices: Miner lamp, search light, ect.
Video Devices: MP3/MP4/MP5, digital camera, portable DVD, portable television,
electronic cigarettes,electricity sound box,ect.
Packing and Transportation:
Battery should be transported after packaging, and should avoid severe vibrating, impacting, extrusion, and direct light and rain. They can be transported by train, ship and plane, etc.
