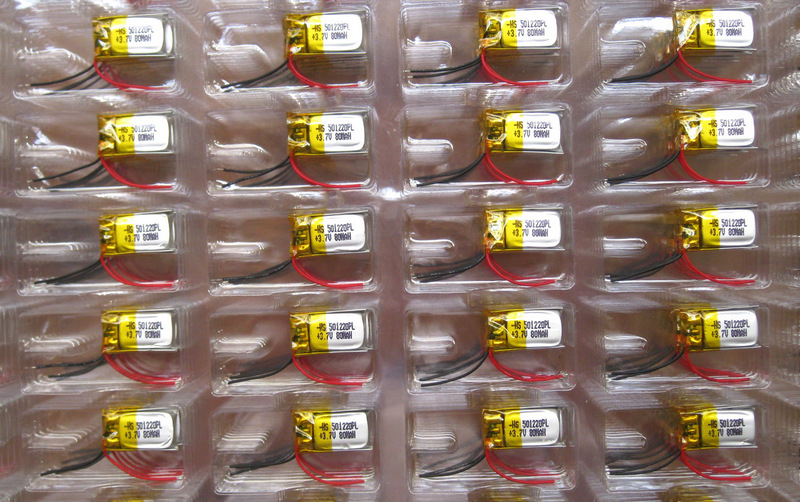

501220 3.7V 80mAh Rechargeable Lipo Battery For Mobile Electronics Devices
Lipo battery Specification:
| Product Name | 501220 80mAh Li-polymer battery |
| Battery Type | Lithium ion polymer battery |
| PCM | Available | |
| Accembly Composed Type | 1S1p/ 1 cell | |
| Nominal Capacity | 80 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 40mA | @0.5C charge |
| Max. charge current | 80 mA | @1C charge |
| Standard Discharge Current | 40 mA | @0.5C discharge |
| Max. Discharge Current | 80 mA | @1C discharge |
| Resistance | ＜100 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 3 g | |
| Dimensions(T.W.L.) | 5.0*12*20 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month |
| Protection Function(PCM) | Over charge, Over discharge,
Over load, Short Circuit |
| Warranty | 12 Months |
Features
1. Long service life and economical
The cell can provide more than 500 charge and discharge cycles. This makes it extremely economical, and provides an expected life similar to that of the device in which it is used.
2. Excellent discharge characteristics
With low internal resistance and high, flat voltage characteristics during strong current discharge, which ensures a wider application field.
3. Long shelf life
provide long storage life with few limiting conditions. It offers problem-free charge after long storage, permitting to use in a wide range of applications.
Our Services :
1.Rich experience
We have specialized in this field for many years with rich experience and good reputation.
Our factory has well-equipped modern office ,dust-free workshop, first-class production and testing equipments, mature production lines and practice ataff members.
2. OEM service
We offer custom OEM service, we offer custom banding options for our current product lines.
3. Quality Assurance
We provide mid-to-high-end products with CE,R0HS , FCC certifications.
4. After sale
We offer one year warranty , fast response, professional solution
Main Applications
Product Tags:
|
|
501220 3.7V 80mAh Rechargeable Lithium Polymer Battery Pack For Mobile Electronics Devices Images
|
