Lipo 3.7V 3000mAh Lithium Li ion Polymer Rechargeable Battery Pack With PCM
Lipo battery Specification:
| Product Name | 123656 3000mAh Lipo battery |
| Battery Type | Lithium ion polymer battery |
| PCM | Available | |
| Accembly Composed Type | 1S1p/ 1 cell | |
| Nominal Capacity | 3000 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 600mA | @0.2C charge |
| Max. charge current | 3000 mA | @1C charge |
| Standard Discharge Current | 600 mA | @0.2C discharge |
| Max. Discharge Current | 3000 mA | @1C discharge |
| Resistance | ＜100 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 40 g | |
| Dimensions(T.W.L.) | 12.0*36*56 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month |
| Protection Function(PCM) | Over charge, Over discharge,
Over load, Short Circuit |
| Warranty | 12 Months |
Advantages:
1. High capacity, low inner resistance, long cycle life, low self-discharge.
2. Rapid charge-discharge cycle life up to more than 500 times.
3. Provide both single cells and battery packs.
4. Fast charge available.
5. Enough, stable capacity, steady discharge and high temperature discharge.
6. Customized sizes, packs, tags, labels, plugs, connectors, over current protection, temperature control protection is available
7. The batteries are applied to GPS,cordless phone, walkmans, solar lighting, electrical drills, shavers, emergency lighting and back-up power, robot etc.

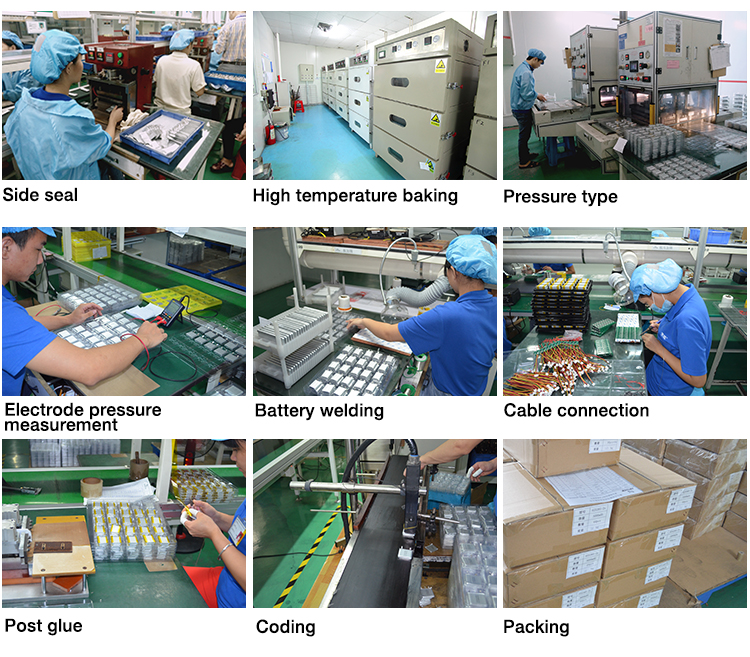

Production process:
Our Battery :
1.Full Battery Range:
Lithium ion battery and Lithium polymer battery.
2.Quality Assurance:
A:No Leakage:100% leak-proof Power Seal Technology and Anti-explosion.
B:Long Lasting:20%-30% Longer time compared with most Chinese Battery.
C:No Hg&Cd:Environmental Friendly.
3.OEM Artworks Design:
We have experienced artworks designer and design artworks free for you.
Factory History:
We are a battery factory established in 2008 in Guangdong China.10 years experienced in battery design,Production and Sales.
2.Safety&Quality Assurance:
MSDS , CE, ROHS , US Mercury report , 2006/66/EC, safety transportation report , ISO9001
3.Delivery and Risk Assurance:
We are a Battery Factory with 10 years experience and with good ability to ensure the delivery time and to control some risks.
4.Competitive price:
5-10% Price lower at least compared with battery trading company and top 10 battery factory.
FAQ:
Q1. Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for battery order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for battery?
A: Firstly let us know your requirements. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly, we arrange the production.
Q6. Is it OK to print my logo on battery product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new battery with new order for small quantity. For defective batch products, we will change them and send new products to you or we can discuss the solution including re-call according to real situation.
|
|
Lipo 3.7V 3000mAh Lithium Li ion Polymer Rechargeable Battery Pack With PCM Images
|
