Customized 902030 3.7V 500mAh Lipo battery 1 cell Lithium polymer battery
Lipo battery Specification:
| Product Name | Lipo battery 902030 500mAh |
| Battery Type | Lithium polymer battery |
| PCM | Available | |
| Accembly Composed Type | 1S1p/ 1 cell | |
| Nominal Capacity | 500 mAh | @0.2C discharge |
| Nominal Voltage | 3.7 V | |
| Charge Voltage | 4.2±0.12 V | |
| Cut-off Voltage | 3.0 V | |
| Standard charge Current | 100mA | @0.2C charge |
| Max. charge current | 500 mA | @1C charge |
| Standard Discharge Current | 100 mA | @0.2C discharge |
| Max. Discharge Current | 500 mA | @1C discharge |
| Resistance | ＜20 mΩ | |
| Cycle Life: | Over 500 times | |
| Weight (Approx.) | 13 g | |
| Dimensions(T.W.L.) | 9.0*20*30 (mm) | |
| Charge Temperature | 0 ~ 45℃ | |
| Discharge Temperature | -20 ~ 60℃ | |
| Storage Temperature | -10~40℃ | Less than one month |
| 0~30℃ | More than one month |
| Protection Function(PCM) | Over charge, Over discharge,
Over load, Short Circuit |
| Warranty | 1 year from shipment date |
Advantage:
a.Fast delivery ,Top quality ;
b.First class after - sales service;
c.High energy density,Long cycle life;
d. Capacity, resistance, Voltage, platform time consistency is good;
e. With short-circuit production function, safe and reliable.
OEM/ODM service:
We have engineers, professional design team for your OEM service requirements. And we can design the products according to the specific requirements of the customers'.
Why choose us?

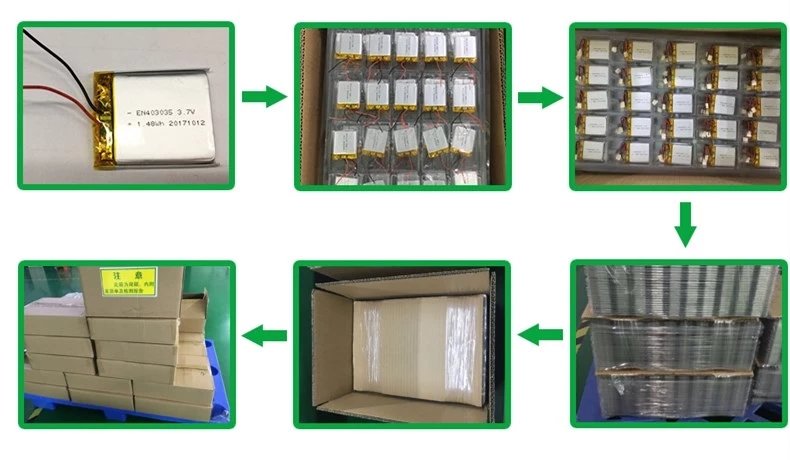

Packing and Shipping:
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door.
2. By Air or by Sea for batch goods & FCL; Airport / Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methods.
4. Delivery Time: 4~8 days for samples; 15-25 days for batch goods.
FAQ:
Q: Are you manufacturer?
A: Yes, we are. You are warmly welcome to visit our factory if you have interest!
Q: Is OEM/ODM available?
A: Yes, it is. Please feel free to tell us your application and your basic battery requirements. Our R&D team will provide a full solution to your with these factors taken into consideration: working temperature, dimension, compound mode, power, capacity, peak current, PCM, fuse, motion control ICs, plug, etc.
Q: Can you provide samples?
A: Yes, we can. After discousion and designing with our sales and engineer, we encourage client to order samples to test our battery quality first.
Q: What safety protection function does the PCM have?
A: Short circuit protection, over-current protection,over-load protection, over-discharge protection, inversely-connection protection, temperature control, balance, fuse, thermistor, etc. Our engineer will choose particular function to use for your battery pack in accordance with your specific situation.
Q: Are there related certificates about battery?
A: If required, we could apply CE, ROHS, CB(IEC62133), UL, KC, PSE, BIS, UN38.3 etc.
|
|
